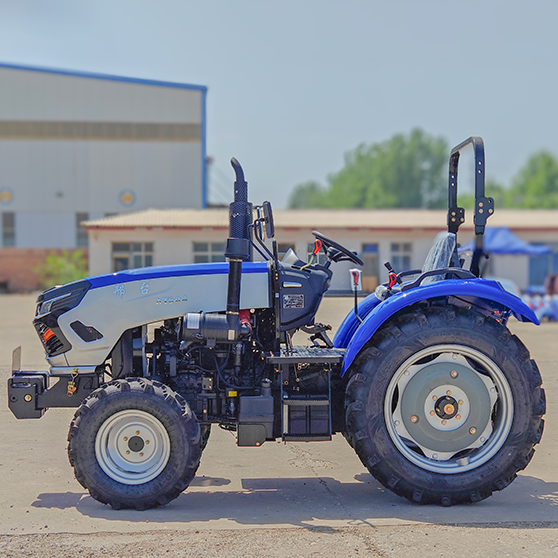

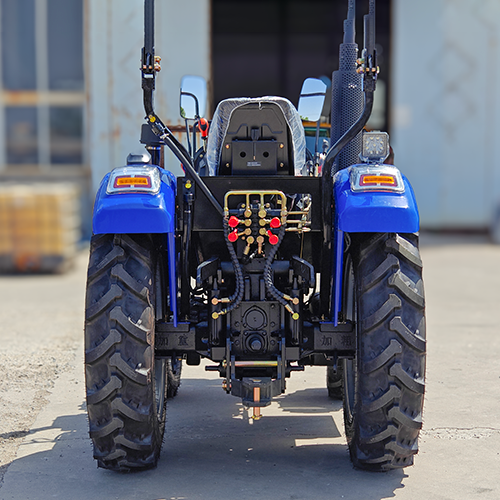

Product Model：XT-504 (Super)
Drive type: 4×4; Engine power: 36.8kW; Gearbox: TE8+8
- Specially designed for complex terrain, hills, plains, greenhouse operation full coverage, more adaptable.
- Lower gas mileage, more power for longer, lower farming costs 20%.
- Multi-purpose machine, sowing, rotary plowing, transportation multi-function fast switching.
Detailed Configuration
| Xingtai Tongde XT504(Super) | ||
| Basic Configuration | ||
| Model | XT504 | |
| Driving | 4×4 | |
| Rated Traction Force (KN) | 9.5 | |
| Overall Dimension(mm) | Long | 3400 |
| Wide | 1200 | |
| High | 2200 | |
| Net Weight (kg) | 1760 | |
| Minimum Use Quality (kg) | 1860 | |
| Wheelbase (mm) | 1800 | |
| Gearbox | TE 8+8 | |
| Wheels | Front | 7.50-16 |
| Rear | 11.2-28 | |
| Tread (mm) | Front | 1200 |
| Rear | 1225 | |
| Minimum Ground Clearance (mm) | 350 | |
| Maximum speed | Forward | 34 |
| Reverse | 13 | |
| Steering System | Hydraulic steering | |
| Linkage | Class I, Rear three-point suspension | |
| Engine Model | YD4R50G1 YN38NKF4 |
|
| Cylinders | 4 | |
| Engine type | Vertical, Water-cooled, Four-stroke | |
| 12 hours of power | 36.82kW | |
| Starting method | Electric Start | |
| Power Take-Off PTO | 540rpm/720rpm | |
